24 GHz Microstrip Array for Highway Safety Application

The antenna array was designed/analysed and matched with HFSS

HFSS Model of Full Microstrip Antenna Array

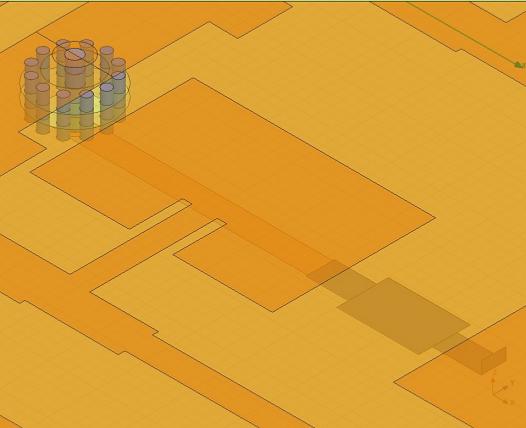

Close-up view of ersatz coax formed using vias and the microstrip matching network leading back to the integrated circuit

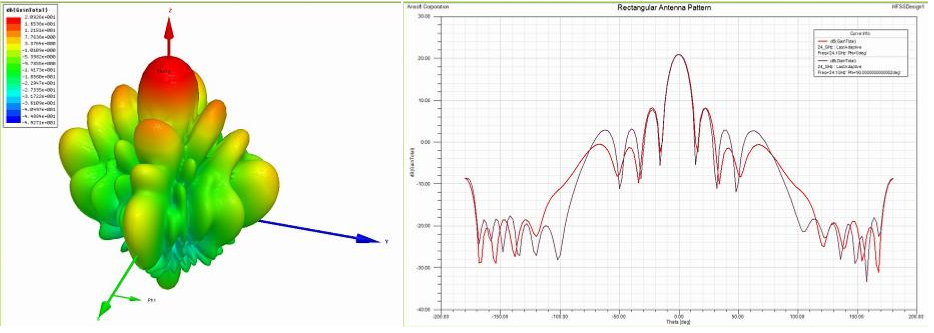

3D and Principle Plane Patterns Predicted with HFSS

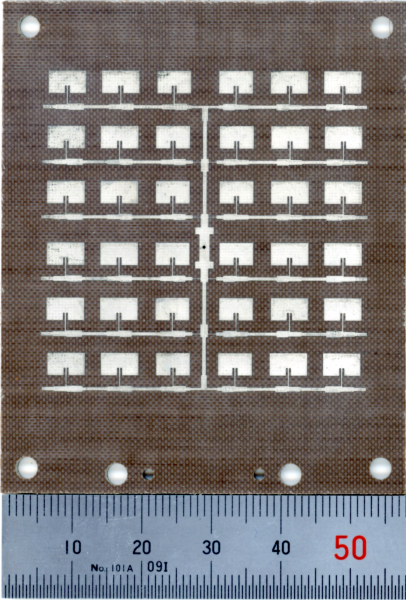

Realization of Array (scale in mm)
