2.4-2.5 GHz Bluetooth/802.11b Omnidirectional Antenna Design

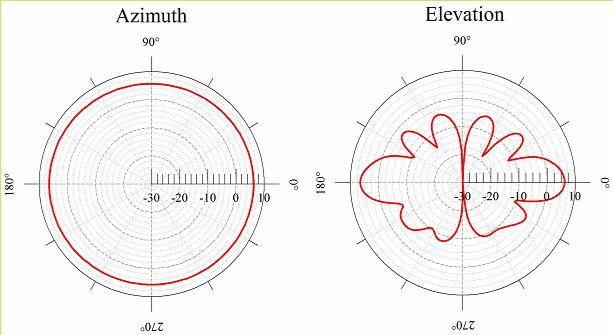

*  Omnidirectional microstrip antenna element

*  6 dBi Antenna gain on axis

*  VSWR < 2:1      2.4-2.5 GHz

*  1/4-20 Threads in end provide drop ceiling or pole mounting  (left)
    option (with RG-142 Cable) or SMA Bulkhead  option (center)

*  Dimensions 15" long  x 1 5/8" diameter (381 mm long x  41.3 mm diameter)
