806 MHz - 2500 MHz Broadband Planar Omnidirectional Antenna Design
*  Omnidirectional Planar antenna element

*  2.5 dBi Antenna gain  over 102.5% impedance bandwidth

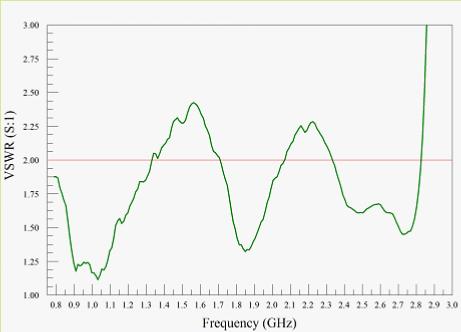

VSWR < 2.0:1   AMPS 806-896 MHz   GSM 880-960 MHz  PCS 1850-1990 MHz
                         Bluetooth 2400-2500 MHz


VSWR < 2.5:1    DCS 1710-1880 MHz   UMTS 1920-2170 MHz



*  SMA Panel Mount Connector

*  Dimensions 4.73" x  5.90"   (120 mm x 150 mm)
