Randwulf Technologies Inc.
4.9-5.875 GHz Broadband Omnidirectional Antenna Design

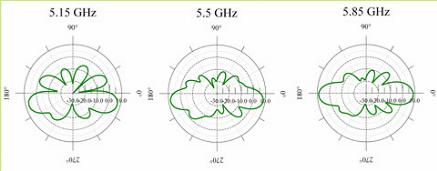

*  Omnidirectional microstrip antenna element

*  6 dBi Antenna gain on axis over 18% impedance bandwidth

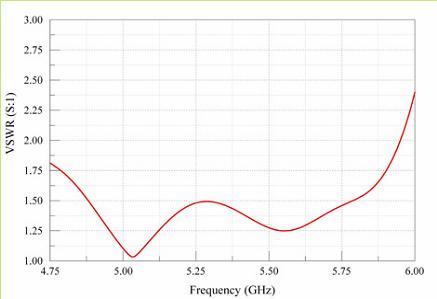

*  VSWR < 2:1      4.9-5.875 GHz

*  1/4-20 Threads in end provide pole mounting or drop ceiling (left)
    option (with RG-142 Cable) or SMA Bulkhead  option (center)

*  Dimensions 6.5" x 1" diameter  (165.1 mm x 25.4 mm)
Copyright  Randwulf Technologies 2011
